Direct answer: A memory umbrella helps its canopy fabric gather along predefined folds, reducing the manual straightening, folding and rolling needed after the frame closes. Two approaches we have encountered are bonded shaping patches and fabric heat-setting: patches help guide the fabric, while heat-setting helps retain carefully arranged creases. “Three-second folding” describes a quick-tidying experience, not a verified guarantee for every umbrella or every operation. Closing the frame is different from rolling the fabric, fastening the strap and putting the umbrella into its sleeve. Buyers should agree the steps being timed and verify performance with actual samples.
Why does a compact folding umbrella still take time to pack neatly?
A folding umbrella is convenient to carry, but that does not always make it convenient to tidy. Compared with a straight umbrella, it takes up less space when closed and fits more easily into a bag. The inconvenience often appears after use.
Once the frame collapses, the fabric still needs to be straightened layer by layer, folded, rolled and secured with the strap. Getting a neat finish can involve several attempts. When someone is in a hurry, loosely rolling the canopy can leave a bulky bundle that looks untidy and is difficult to return to its sleeve.
As umbrella makers, we pay attention to these small frustrations. Memory umbrellas address the need for easier folding and neater packing. Hand in Hand Umbrella can make this type of easy-tidy umbrella, with the configuration and actual packing effect confirmed through samples.
A frame that closes and a canopy that packs neatly are solving two different problems. Pressing an automatic-close button must not be presented as completing fabric straightening, rolling, strap fastening and sleeving.
How do shaping patches and fabric heat-setting compare?
The comparison below covers two approaches we have encountered. It does not mean that these are the only technologies available.
| Comparison | Patch-assisted shaping | Fabric heat-setting |
|---|---|---|
| How it works | Shaping patches are bonded at selected positions to help the fabric gather along its folds. | The canopy is arranged and folded first, then heated under suitable conditions to help retain the creases. |
| Critical details | Patch position, shape, count and layout must work with the canopy. | The quality of the initial folding and processing conditions suitable for the fabric matter. |
| Trade-offs | Additional material affects weight, packed volume and the handling experience. | Crease retention after use and compatibility between the fabric and process need assessment. |
| Misleading shortcut | Eight versus sixteen patches is not, by itself, a quality ranking. | A neat first demonstration does not prove stable long-term performance. |
| Sample checks | Compare complete umbrellas for tidying, weight and performance after repeated opening and closing. | Check how the canopy gathers again after reopening and whether the effect remains after use. |
Both approaches aim to make a folding umbrella easier to put away neatly. Buyers should assess convenience, weight, durability in use and cost together rather than selecting a process by its name alone.

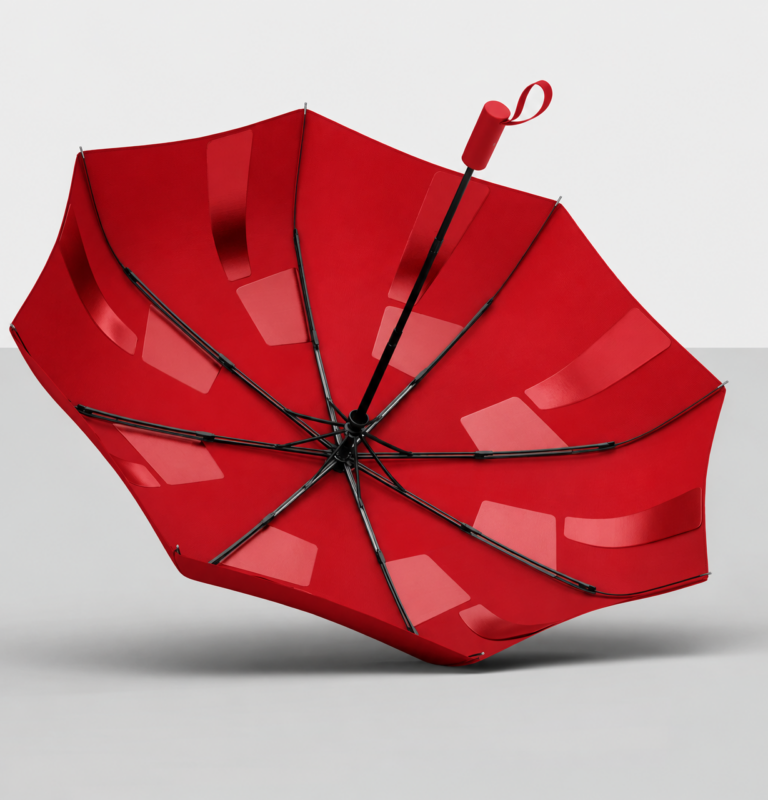

How do bonded shaping patches help the canopy fold?
In this approach, shaping patches are bonded to appropriate positions on the canopy fabric to help it hold the required folding form. When the umbrella closes, the fabric can gather more readily along the folds, reducing the effort needed to straighten it.
Adding material also affects the umbrella’s weight. For a compact product sold on portability, easier packing needs to be balanced against the preference for a light umbrella. This remains a useful area for product improvement.
Can buyers judge the design by eight patches versus sixteen?
Among the designs we have encountered, some divide an eight-panel canopy further according to its folding positions and use sixteen small patches. Others use eight small patches, changing the count and layout in an attempt to simplify the construction and reduce added material.
These numbers describe individual design examples, not a standard memory-umbrella specification. Patch count alone does not determine product quality. The important question is whether the positions, shapes and layout help the fabric gather properly, and whether reducing material preserves the desired packing effect.
More patches are not automatically better. Fewer patches also do not, on their own, prove that the finished umbrella is lighter or more durable. The comparison has to be made between complete samples.
How does heat-setting help umbrella fabric retain folds?
A different approach is to process the fabric so that it retains the arranged creases. There are two important stages:
- Arrange the canopy carefully. Someone experienced in folding umbrellas straightens the fabric and folds it neatly along the intended lines.
- Set the arranged creases. Apply a heat treatment appropriate to the fabric and the product to help retain that form.
The first stage matters because the later treatment is intended to preserve the shape already arranged. With a suitable process, the umbrella can be opened and closed again with less repeated fabric straightening.
Processing temperature and time depend on the fabric and the actual method. This article supplies no universal temperature, treatment duration or crease-lifespan figure. Heat-setting must not be interpreted as a guarantee that folds will remain permanently.
When approving samples, look beyond the first neat demonstration. Check whether the canopy still gathers along the intended folds after repeated opening, closing and actual use. Our umbrella fabric comparison provides related background on choosing canopy materials.
What should “three-second folding” actually include?
If quick packing is a purchasing requirement, first define the action being measured. Does the claim refer to:
- Closing only the frame or canopy?
- Gathering and rolling the canopy fabric?
- The complete process, including fastening the strap and returning the umbrella to its sleeve?
Times with different start and finish points are not directly comparable. During sample approval, agree the operating steps, record any extra manual straightening, and observe different operators and performance over repeated opening and closing.
A project that needs a specific time commitment should be tested using the agreed method before that commitment is confirmed. “Easy to pack neatly” is a product goal that can be assessed with samples; “every action completed in three seconds every time” needs separate evidence. We provide no measured seconds or blanket speed guarantee here.
Could shape-memory metal wire offer another approach?
During a visit to a larger fabric-finishing factory, I discussed another possibility: could metal wire with shape-memory properties be introduced into the warp or weft of a fabric to help shape and fold an umbrella canopy?
For us, this remains a research idea discussed with the factory. Whether it is suitable for umbrellas and whether it can achieve the intended result require further verification. At the time, we had not confirmed whether mature equivalent products were already available on the market.
This conversation is therefore not evidence that Hand in Hand Umbrella uses this method in mass production. It also does not establish an original invention, a patent or a proven performance benefit.
Moving from an idea to a usable product would require consideration of compatibility with canopy fabric, repeated opening and closing, weight, feel and cost. Nevertheless, the discussion was valuable: even the specific problem of putting an umbrella away neatly leaves room to explore materials and processes.
Who might value an easier-to-pack memory umbrella?
From our product observations, easy-tidy umbrellas appeal to some younger consumers. More precisely, they may interest people who are curious about new products, care about everyday handling and are willing to pay for convenience. This is our observation, not a market-research statistic.
Such users may not study how the patches or creases work. They notice whether the umbrella can be put away quickly, sits neatly in a bag and makes daily travel a little less troublesome.
Novelty alone is not enough. Convenient packing needs to remain useful in everyday use, with an acceptable weight and suitable durability, for the product to continue earning the user’s approval.
What should buyers confirm when sampling a custom memory umbrella?
- The actual process: Does the proposed model use shaping patches, heat-setting or another approach? Ask the supplier to explain what is actually being made.
- The packing requirement: Is the aim to reduce manual straightening, or to complete specific actions within an agreed time?
- Weight and packed volume: Compare the complete sample with the portability your customer accepts. Do not judge it only by demonstration speed.
- Performance after use: Check whether the folding effect remains after repeated use and whether the patches and fabric continue to work together appropriately.
- Overall finished quality: Confirm opening and closing functions, canopy workmanship, assembly and rain-protection requirements as well as easy packing.
- Quantity, budget and lead time: Assess the selected model, materials and processing steps. A generic promise is not a substitute for a confirmed project specification.
These are proposed acceptance checks, not claims that the illustrated product has completed a particular number of test cycles or achieved a performance grade. For broader inspection planning, see our umbrella quality-control guide.
Frequently asked questions
Does a memory umbrella pack itself without any manual tidying?
Not necessarily. A memory umbrella helps the fabric gather along predefined folds and reduces manual straightening. Rolling the canopy, fastening the strap and putting it into a sleeve may still require manual work, depending on the design and operating method.
Are eight shaping patches necessarily better than sixteen?
No. Patch count is only one part of the design. Position, shape, layout and cooperation with the canopy fabric matter. Whether fewer patches maintain convenient folding after reducing added material must be checked with complete umbrella samples.
Will a heat-set memory umbrella retain its creases forever?
This article provides no test evidence for permanent crease retention. Buyers should assess the fabric, processing conditions and sample performance after use. The name of the heat-setting process alone does not establish a lifetime guarantee.
Does “three-second folding” include fastening the strap and putting the umbrella into its sleeve?
The phrase alone does not tell you. Agree which actions are included and use the same timing method for each sample. Closing the frame is not the same as finishing the entire packing process.
Is the shape-memory metal-wire idea already ready for mass production?
The idea discussed here came from a conversation at a fabric-finishing factory. We have not verified its feasibility for umbrellas or confirmed whether a mature equivalent is available on the market. It is not a production process that we claim to have implemented.
Why is removing a few packing steps a worthwhile innovation?
Hand in Hand Umbrella has worked in the umbrella industry since 2000. Over time, I have seen that change is not always dramatic. It can mean adjusting the position of a few patches, improving one fabric process or removing a few manual steps after closing an umbrella.
Those details eventually reach the person using the product. Making an umbrella easier to put away is a practical improvement worth developing further.
We can make this type of easy-tidy umbrella. If you are considering a custom project, share your intended use, umbrella style, quantity, weight preference and budget. The process and actual packing effect should then be confirmed through samples. For us, innovation is not simply giving a product a new name: it is turning everyday inconveniences into specific improvements that can be checked in practice.
Source: Aihua Chen’s product experience and factory discussions, organized by Hand in Hand Umbrella, Hand in Hand Umbrella Factory Process examples and research ideas are identified separately; no universal technical standard or measured speed claim is asserted.
